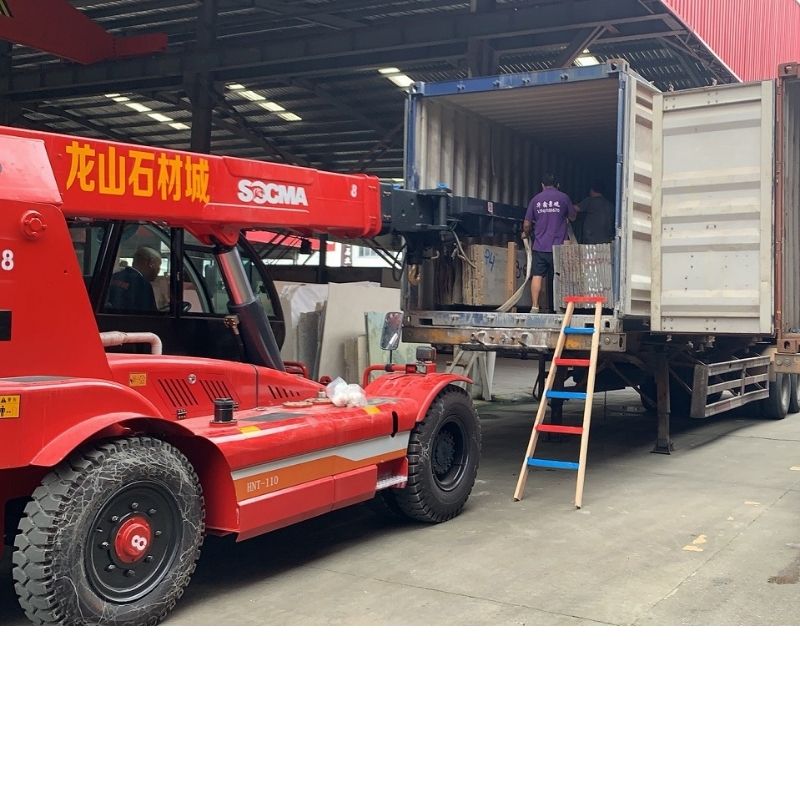

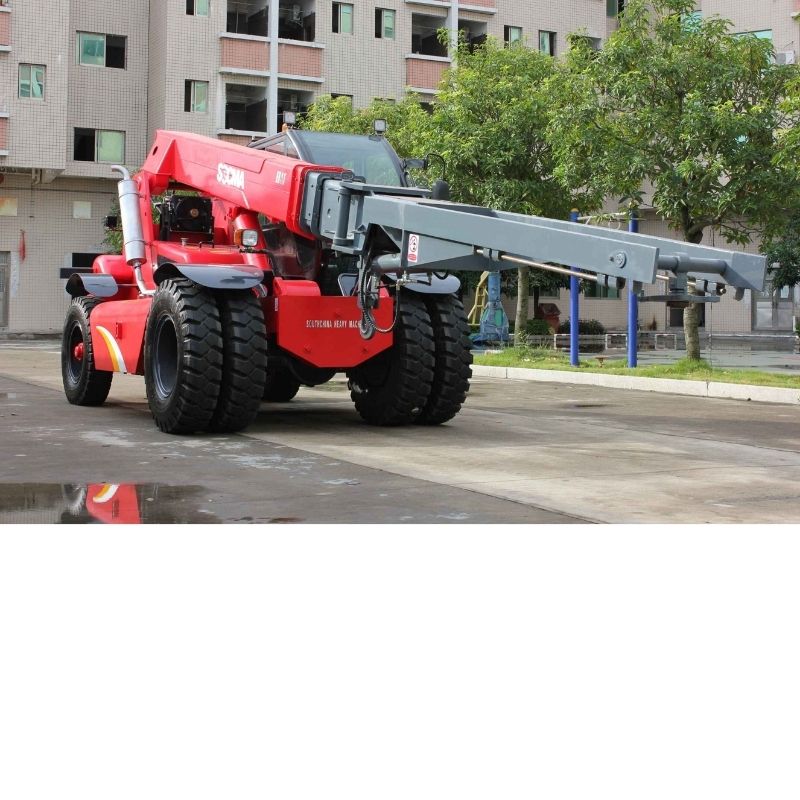

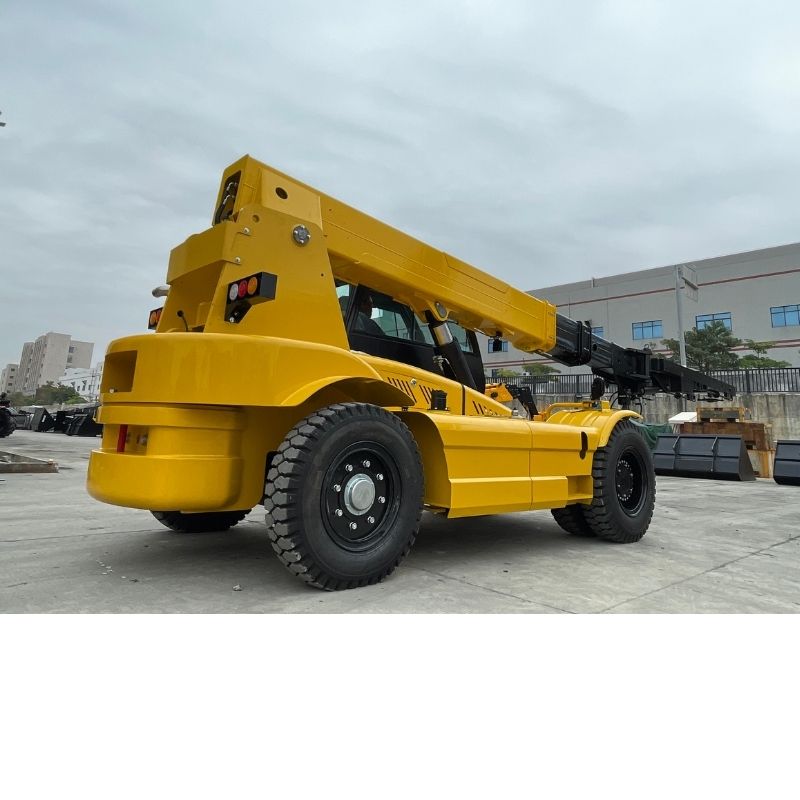

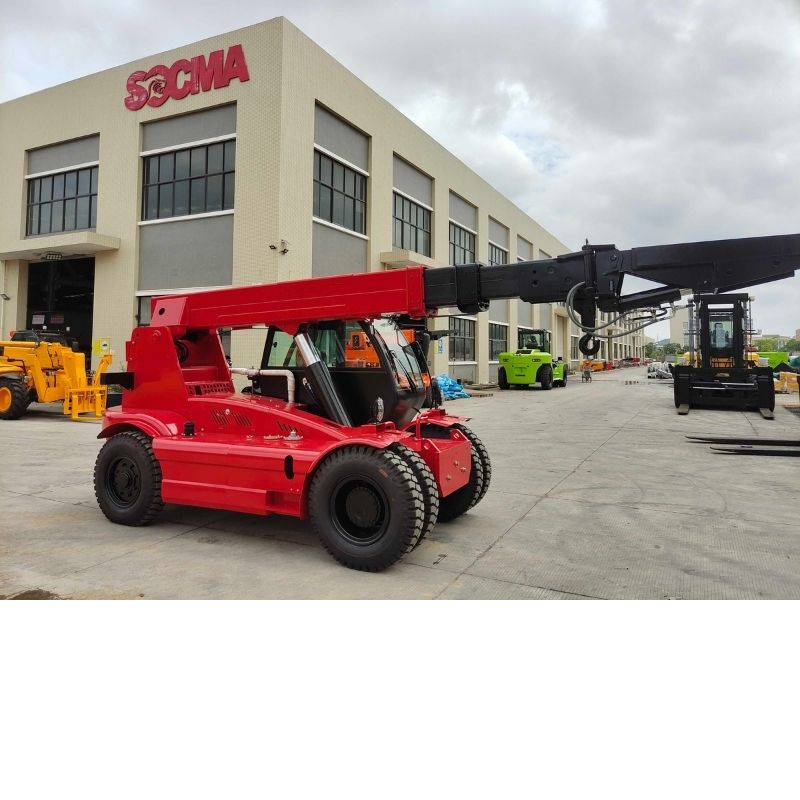

The SOCMA HNT-110 11 Ton Telehandler Forklift is designed for heavy-duty construction and industrial applications. With a robust hydraulic system, advanced engine performance, and a versatile telescopic arm, this telehandler ensures efficiency and reliability in challenging environments.
The SOCMA HNT-110 11 Ton Telehandler Forklift is built for demanding construction and industrial tasks, offering an 11-ton lifting capacity and exceptional reach. Its closed hydraulic static walking system with electro-hydraulic direct control ensures precise operation and adaptability on uneven terrain.
Powered by a Dongfeng Cummins engine with an air-to-air cooling radiator, the HNT-110 reduces intake temperature, increases air volume, and boosts engine power. The hydraulic system includes an oil return radiator and back pressure prevention device to maintain thermal balance, ensuring reliable performance during extended operations.
The HNT-110 features an ergonomic cab design with enhanced visibility and operator comfort. The telescopic arm provides a maximum extension distance, making it ideal for lifting and placing heavy loads at height, while the robust frame ensures stability and safety in rugged environments.
Rated Load: 11 tons
Load Center: 600 mm
Wheelbase: 3100 mm
Weight: 15000 kg
Mast/Carriage Tilt Angle (Front/Rear): 6/12 degrees
Mast Height (Fork Lowering): 3200 mm
Lift Height (Bottom of Forks): 4500 mm
Height of Mast Extended (Unloaded): 5000 mm
Height to Head Guard/Height to Cab: 2900 mm
Overall Length: 5700 mm
Fork Front Vertical Surface to Rear End of Vehicle: 4300 mm
Overall Width: 2450 mm
Fork Dimension: 1200x200x80 mm
Mast Min Ground Clearance (with Load): 270 mm
Wheelbase Center Min Ground Clearance (with Load): 410 mm
Min Turning Radius: 5300 mm
Travel Speed (with Load/without Load): 25/28 km/h
Max Lifting Speed (with Load/without Load): 250/270 mm/s
Max Lowering Speed (with Load/without Load): 330/310 mm/s
Traction: 5200 N
Gradeability (with Load/without Load): 20/22 %
Driving Brake: Hydraulic clamp disc
Tire Specs - Front: 18/70-24PR
Tire Specs - Rear: 10.00-20PR
Tires Qty (Front/Rear - Drive Wheels): 2/2
Wheel Tread - Front: 1950 mm
Wheel Tread - Rear: 1900 mm
Engine Brand/Model: Dongfeng Cummins 4BTA3.9-C130
Cylinder No.: 4
Transmission Gears (Front/Rear): 2/2
Attachments Working Pressure: 20 bar
Attachments Using Oil Amount: 260 l/min
