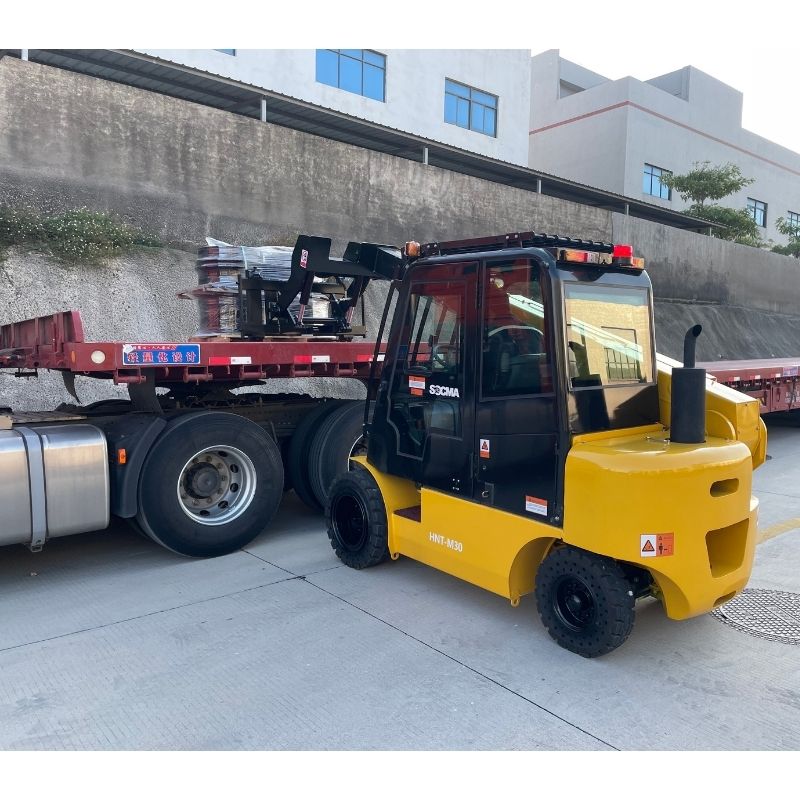

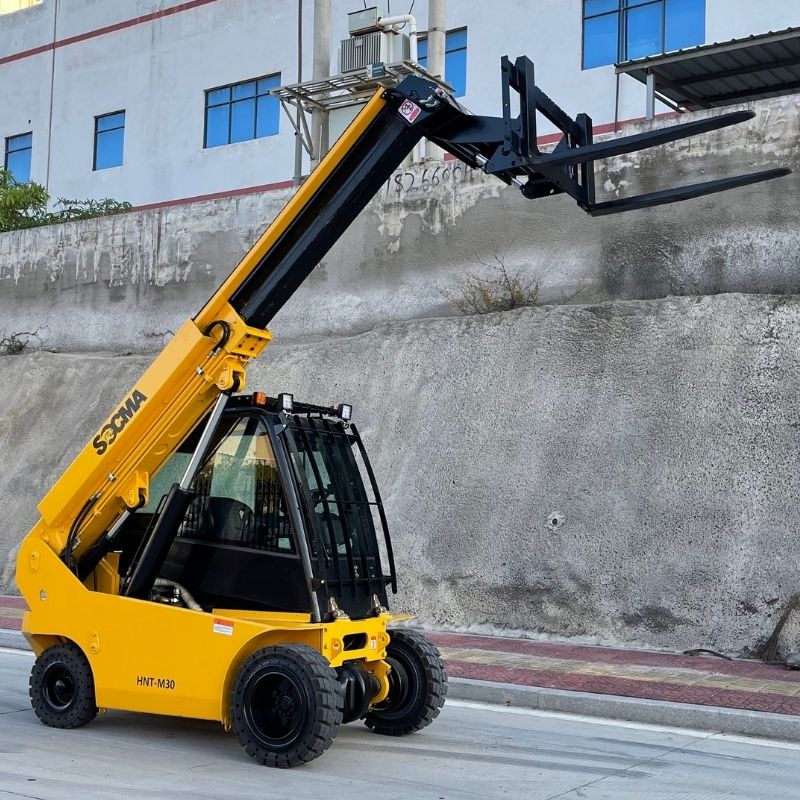

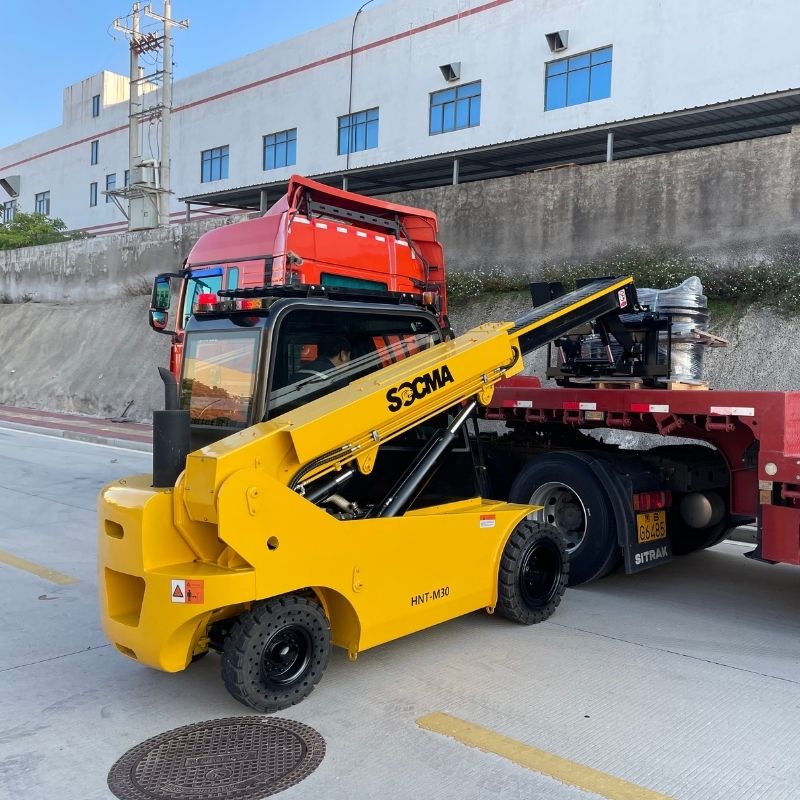

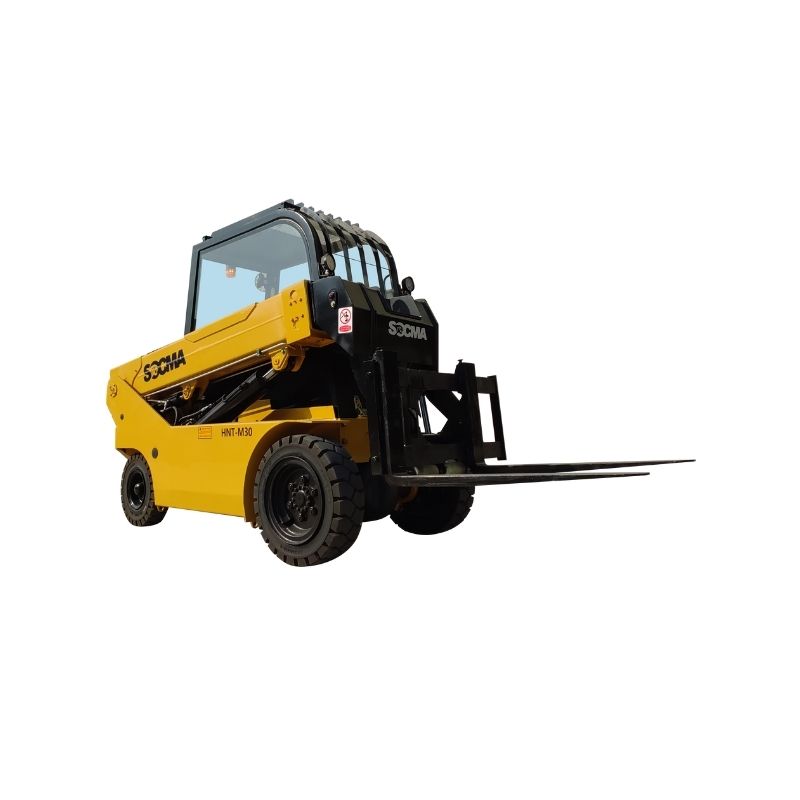

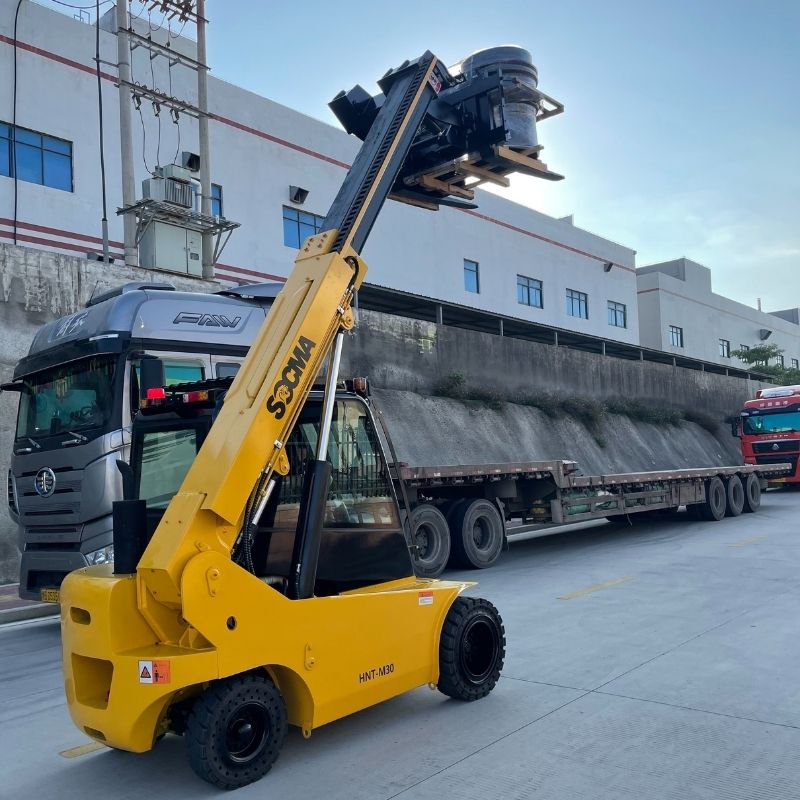

The SOCMA HNT-M25 2.5 Ton Mini Telehandler Forklift is designed for compact spaces in construction, warehousing, and agriculture. With a 2.5-ton lifting capacity and a 7-meter reach, it offers agility and versatility in tight environments.
The SOCMA HNT-M25 2.5 Ton Mini Telehandler Forklift is engineered for small-scale lifting and stacking in confined spaces. It features a 2.5-ton lifting capacity and a 7-meter telescopic boom, making it ideal for tasks like material handling in warehouses or light construction projects.
Equipped with four-wheel drive and a two-stage quadrilateral telescopic boom, the HNT-M25 ensures excellent maneuverability and stability on varied terrain. Its hydraulic-mechanical transmission, hydraulic power steering, and hydraulic braking provide precise control, with optional attachments like buckets and hooks enhancing its versatility.
Powered by a DF Cummins engine, the HNT-M25 delivers reliable performance. The compact cab offers good visibility and ergonomic controls, making it suitable for operators working in tight or complex environments.
Rated Load: 2.5 tons
Load Center: 500 mm
Lifting Height: 7000 mm
Max Outreach (Front Wheel to Load Center): 4000 mm
Wheelbase: 2300 mm
Weight: 4500 kg
Mast/Carriage Tilt Angle (Front/Rear): 6/12 degrees
Mast Height (Fork Lowering): 2200 mm
Height to Head Guard/Height to Cab: 2100 mm
Overall Length: 4300 mm
Fork Front Vertical Surface to Rear End of Vehicle: 3400 mm
Overall Width: 1800 mm
Fork Dimension: 1000x120x50 mm
Mast Min Ground Clearance (with Load): 240 mm
Min Turning Radius: 4000 mm
Travel Speed (with Load/without Load): 20/25 km/h
Max Lifting Speed (with Load/without Load): 200/220 mm/s
Max Lowering Speed (with Load/without Load): 280/260 mm/s
Traction: 3500 N
Gradeability (with Load/without Load): 18/20 %
Driving Brake: Hydraulic clamp disc
Tire Specs - Front: 14/70-20PR
Tire Specs - Rear: 14/70-20PR
Tires Qty (Front/Rear - Drive Wheels): 2/2
Wheel Tread - Front: 1500 mm
Wheel Tread - Rear: 1500 mm
Engine Brand/Model: DF Cummins 4BTA3.9-C80
Cylinder No.: 4
Transmission Gears (Front/Rear): 2/2
Attachments Working Pressure: 18 bar
Attachments Using Oil Amount: 180 l/min
