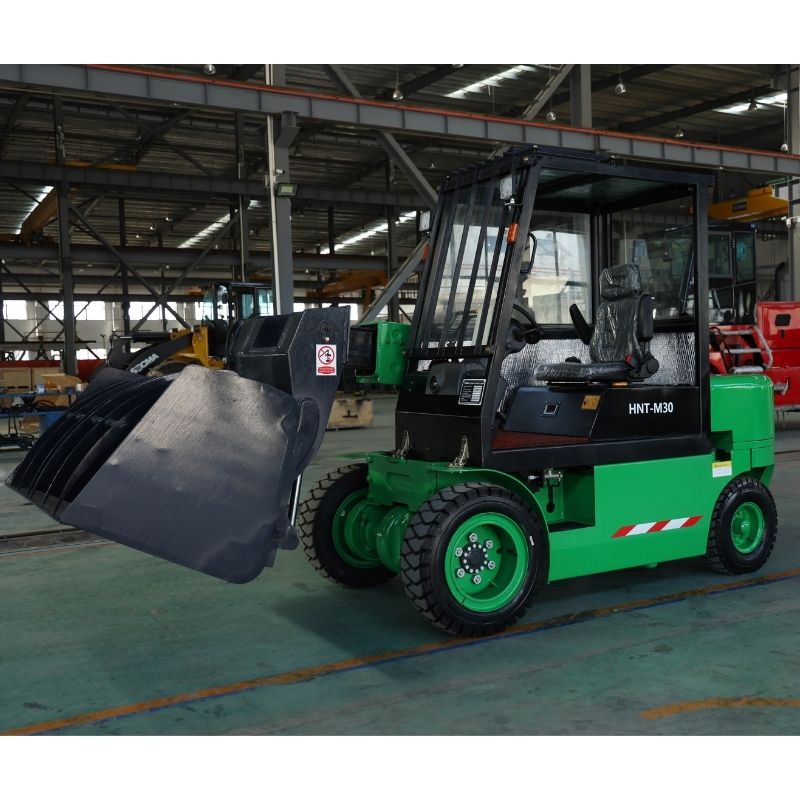

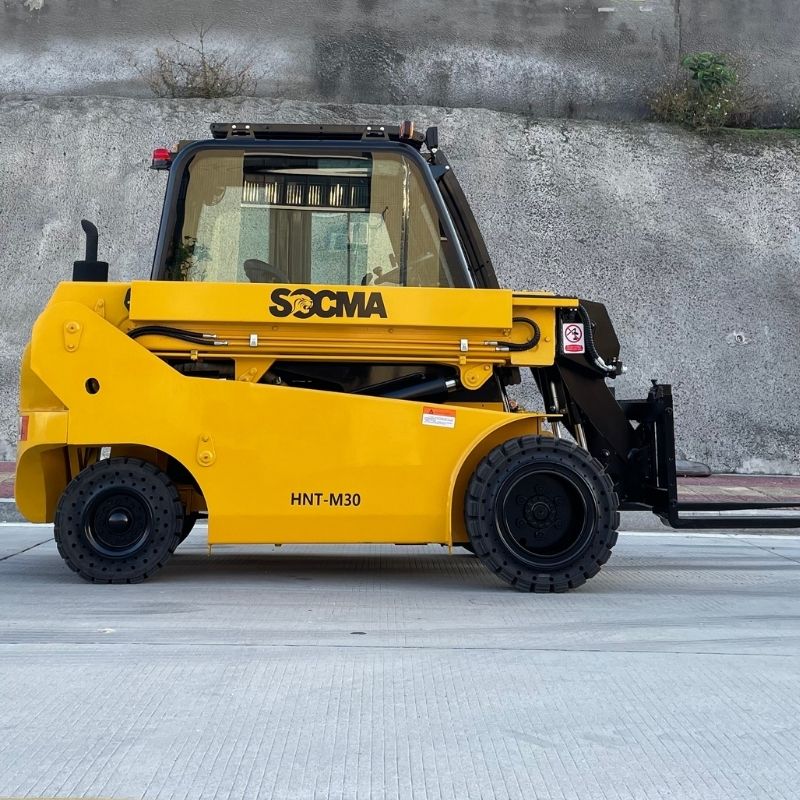

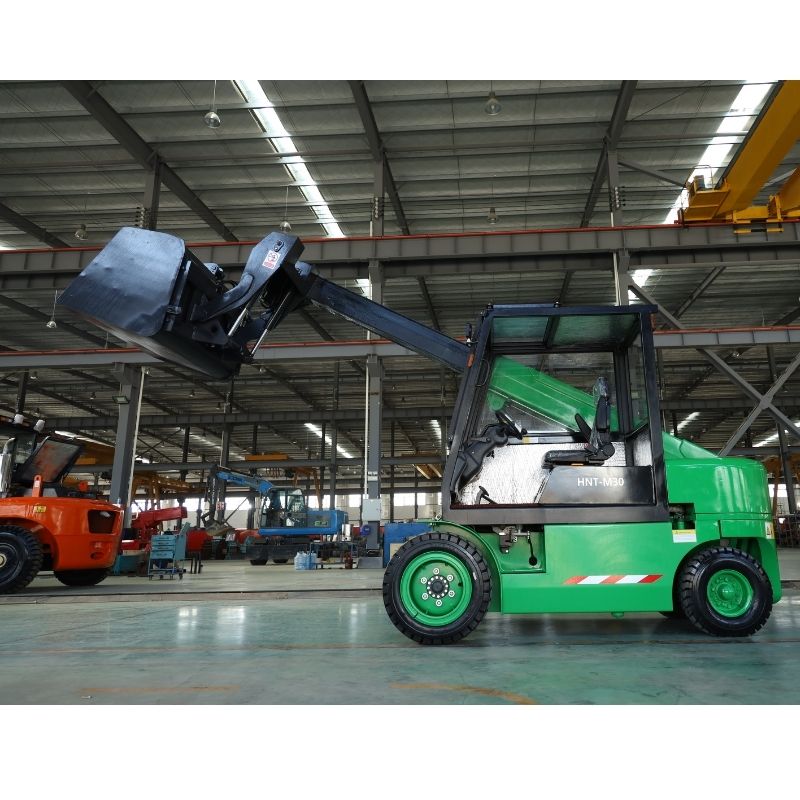

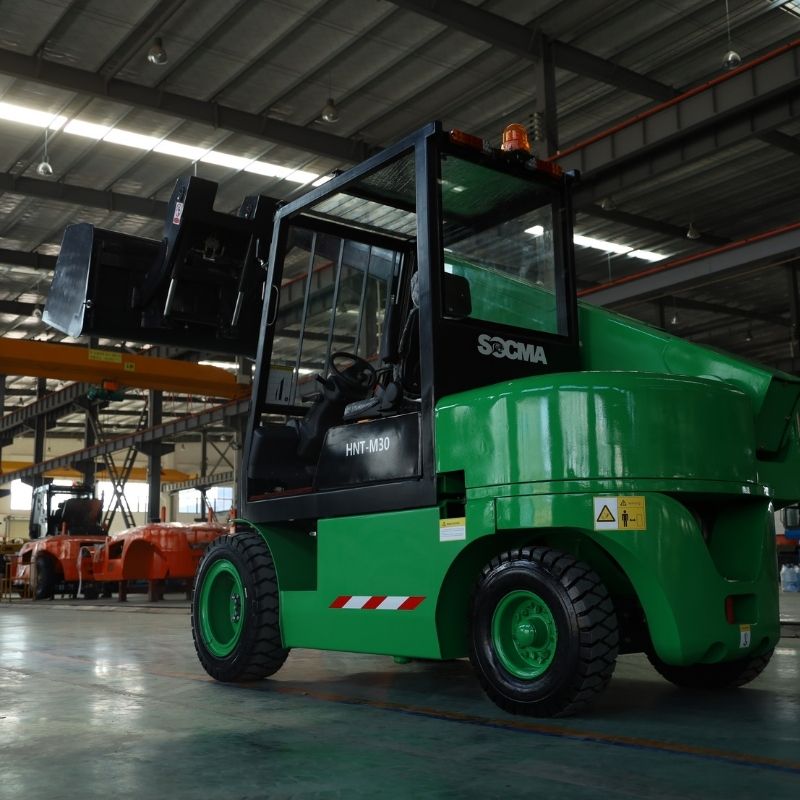

The SOCMA HNT-M30 3 Ton Mini Telehandler Forklift is designed for compact spaces in construction, warehousing, and agriculture. With a 3-ton lifting capacity and a 4-meter reach, it offers agility and efficiency in tight environments.
The SOCMA HNT-M30 3 Ton Mini Telehandler Forklift is engineered for small-scale lifting and stacking in confined spaces. It features a 3-ton lifting capacity and a 4-meter telescopic boom, making it ideal for material handling in warehouses, light construction, and agricultural tasks.
Equipped with a two-stage quadrilateral telescopic boom, hydraulic transmission, hydraulic power steering, and hydraulic braking, the HNT-M30 ensures precise control and stability. Its 2-wheel drive configuration is suitable for less challenging terrains, with optional attachments like buckets and hooks for added versatility.
Powered by a Yanmar 4TNE98 engine meeting Euro III emission standards, the HNT-M30 delivers reliable performance with fuel efficiency. The cab features three-sided glass for enhanced visibility, an ergonomic layout with pilot valve control, and an optional full enclosure for operator comfort.
Rated Load: 3 tons
Load Center: 500 mm
Lifting Height: 4000 mm
Max Outreach (Front Wheel to Load Center): 2500 mm
Wheelbase: 2300 mm
Weight: 4800 kg
Mast/Carriage Tilt Angle (Front/Rear): 6/12 degrees
Mast Height (Fork Lowering): 2200 mm
Height to Head Guard/Height to Cab: 2100 mm
Overall Length: 4400 mm
Fork Front Vertical Surface to Rear End of Vehicle: 3500 mm
Overall Width: 1800 mm
Fork Dimension: 1000x120x50 mm
Mast Min Ground Clearance (with Load): 240 mm
Min Turning Radius: 4000 mm
Travel Speed (with Load/without Load): 20/25 km/h
Max Lifting Speed (with Load/without Load): 200/220 mm/s
Max Lowering Speed (with Load/without Load): 280/260 mm/s
Traction: 3600 N
Gradeability (with Load/without Load): 18/20 %
Driving Brake: Hydraulic clamp disc
Tire Specs - Front: 14/70-20PR
Tire Specs - Rear: 14/70-20PR
Tires Qty (Front/Rear - Drive Wheels): 2/2
Wheel Tread - Front: 1500 mm
Wheel Tread - Rear: 1500 mm
Engine Brand/Model: Yanmar 4TNE98
Emission Standard: Euro III
Cylinder No.: 4
Transmission Gears (Front/Rear): 2/2
Attachments Working Pressure: 18 bar
Attachments Using Oil Amount: 180 l/min
