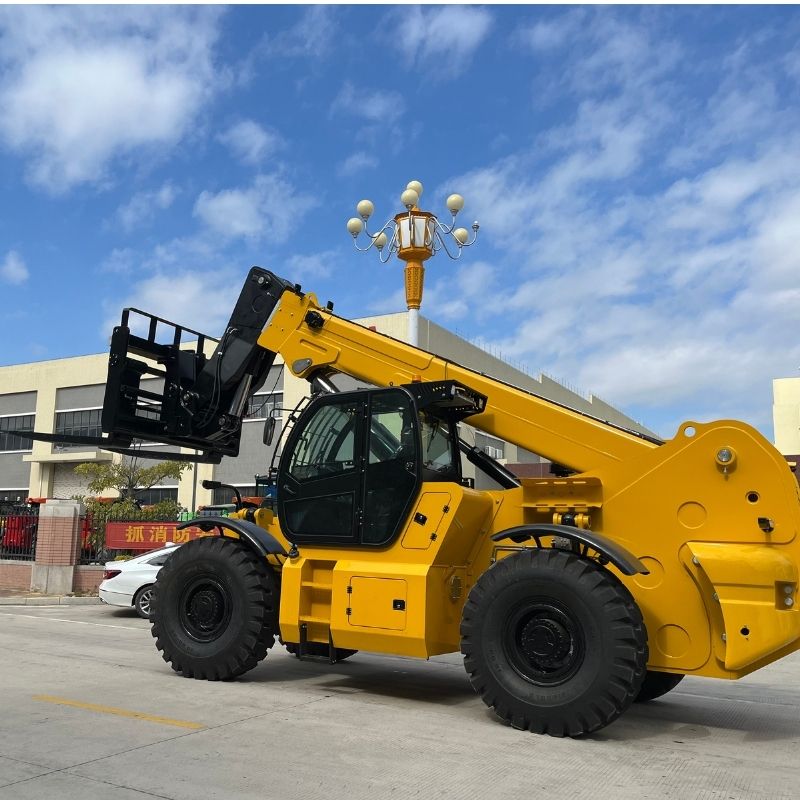

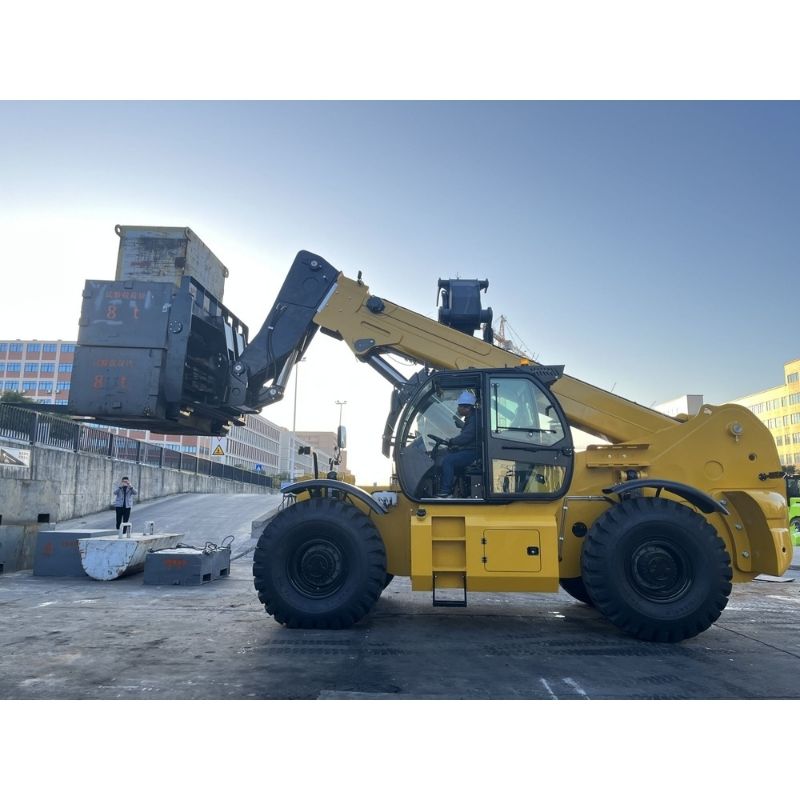

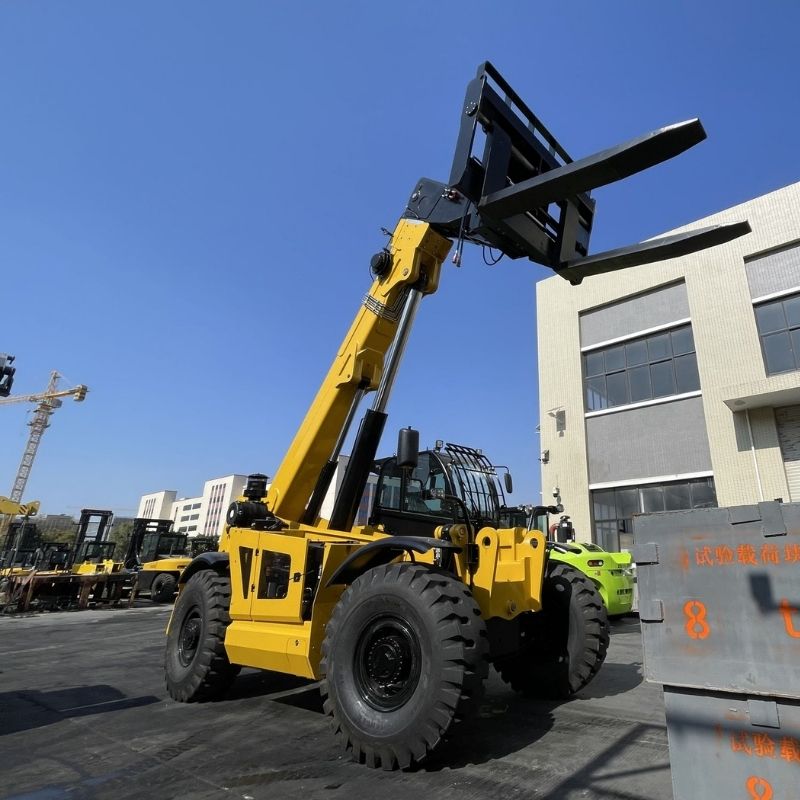

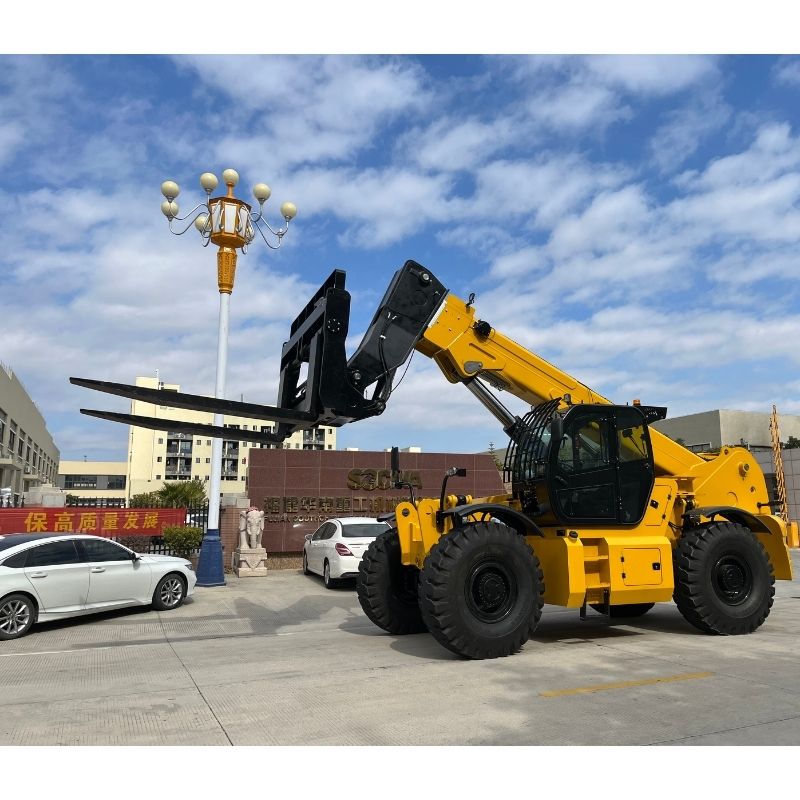

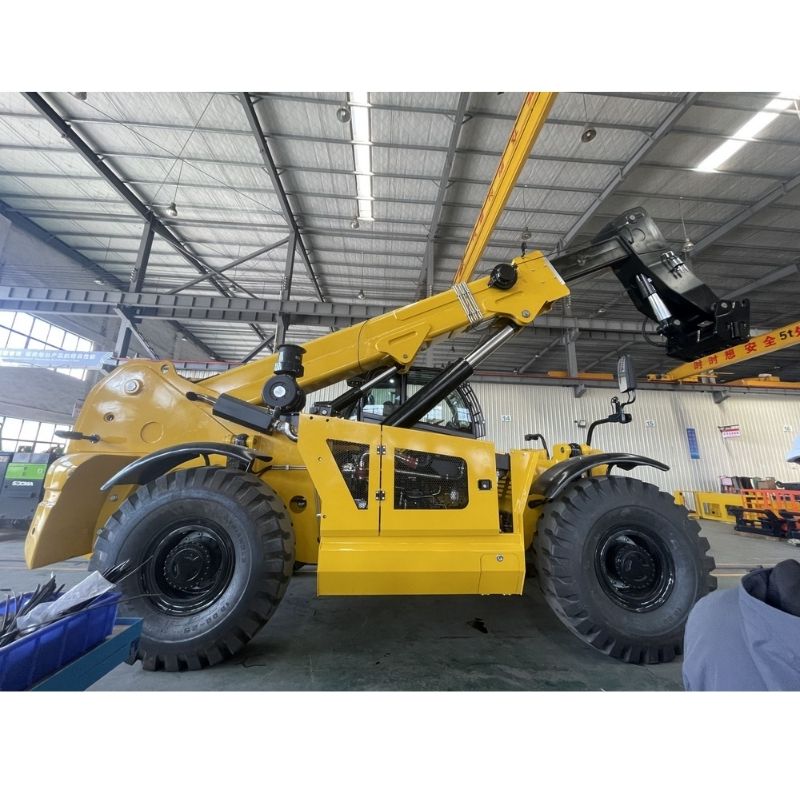

The SOCMA HNT20010-4Z 20 Ton 10 Meter Telehandler Forklift is engineered for extreme heavy-duty tasks in construction, mining, and logistics. With a 20-ton lifting capacity and a 10-meter reach, it delivers unparalleled strength and stability in the toughest environments.
The SOCMA HNT20010-4Z 20 Ton 10 Meter Telehandler Forklift is built for the most demanding construction and mining applications. It features a 20-ton lifting capacity and a 10-meter telescopic boom, designed to handle massive loads in rugged terrains.
Equipped with 4-wheel drive, 4-wheel steering, and a hydrostatic transmission, the HNT20010-4Z ensures exceptional maneuverability and control. Its reinforced arm frame and hydraulic stabilizers enhance safety, while attachments like tire clamps and heavy-duty forks cater to mining and material handling needs.
Powered by a Cummins turbocharged diesel engine with an advanced cooling system, the HNT20010-4Z offers reliable performance. The cab includes air conditioning, a reversing camera, joystick controls, and a multifunctional LCD monitor, prioritizing operator comfort and safety.
Rated Load: 20 tons
Load Center: 600 mm
Lifting Height: 10000 mm
Max Outreach (Front Wheel to Load Center): 7000 mm
Load at Max Height (on Outriggers): 10000 kg
Wheelbase: 4000 mm
Weight: 30000 kg
Mast/Carriage Tilt Angle (Front/Rear): 6/12 degrees
Mast Height (Fork Lowering): 3200 mm
Height to Head Guard/Height to Cab: 3000 mm
Overall Length: 8500 mm
Fork Front Vertical Surface to Rear End of Vehicle: 7000 mm
Overall Width: 3000 mm
Fork Dimension: 1500x200x80 mm
Mast Min Ground Clearance (with Load): 350 mm
Wheelbase Center Min Ground Clearance (with Load): 400 mm
Min Turning Radius: 6500 mm
Travel Speed (with Load/without Load): 25/35 km/h
Max Lifting Speed (with Load/without Load): 200/220 mm/s
Max Lowering Speed (with Load/without Load): 250/230 mm/s
Traction: 8000 N
Gradeability (with Load/without Load): 20/25 %
Driving Brake: Wet multi-disc hydraulic
Tire Specs - Front: 18/70-24PR
Tire Specs - Rear: 18/70-24PR
Tires Qty (Front/Rear - Drive Wheels): 4/4
Wheel Tread - Front: 2400 mm
Wheel Tread - Rear: 2400 mm
Engine Brand/Model: Cummins QSX11.9-C400
Cylinder No.: 6
Transmission: Hydrostatic
Transmission Gears: Automatic (4WD/4WS)
Attachments Working Pressure: 25 bar
Attachments Using Oil Amount: 350 l/min
