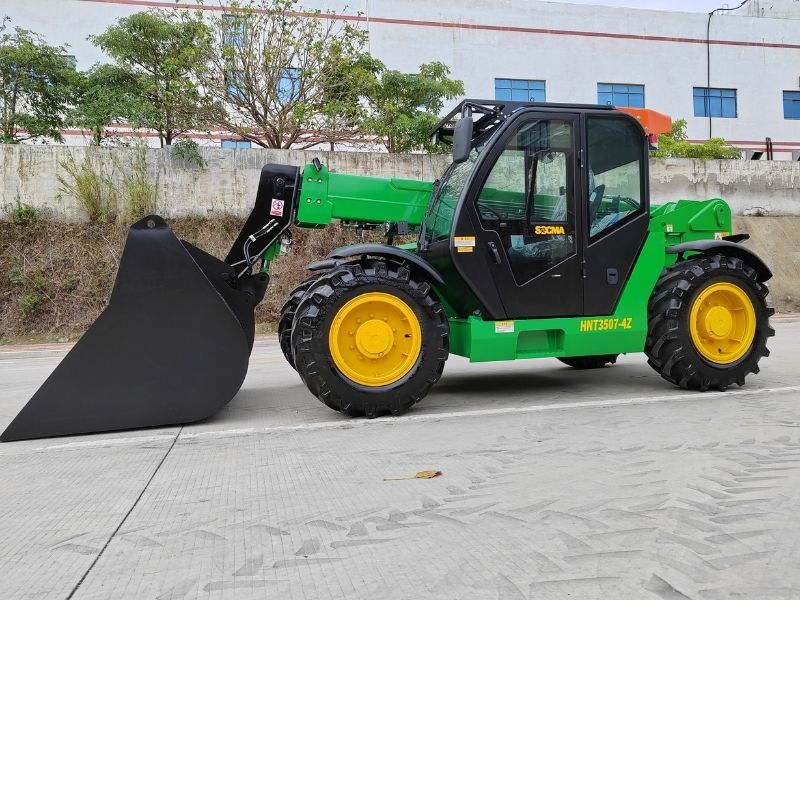

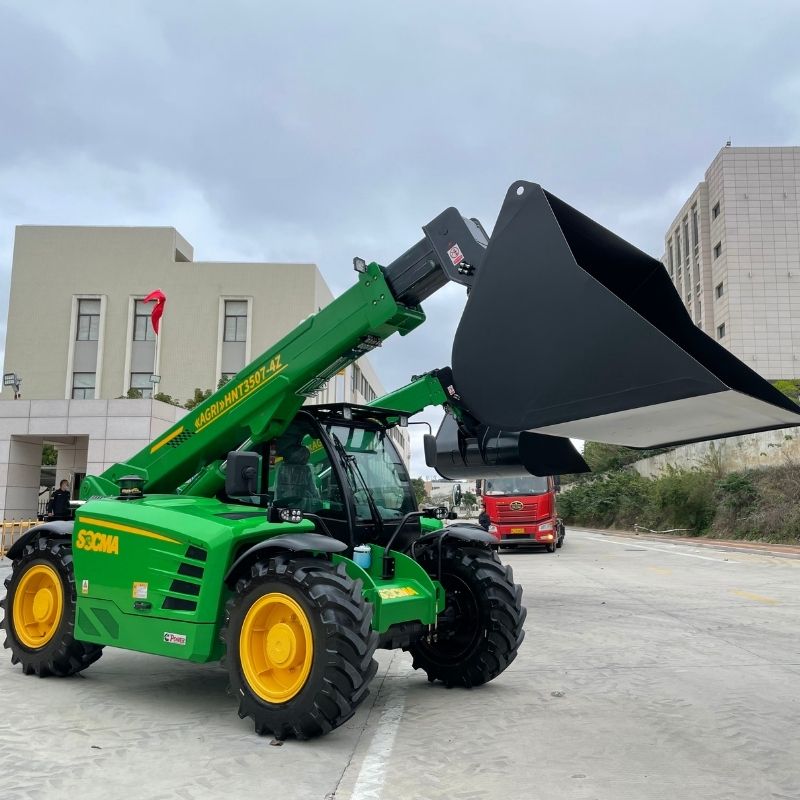

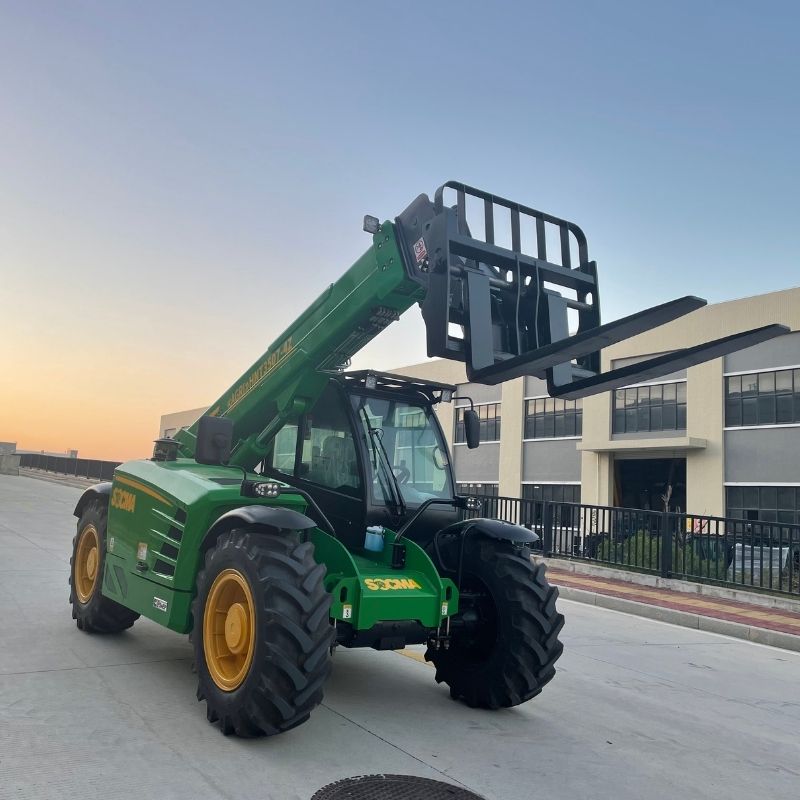

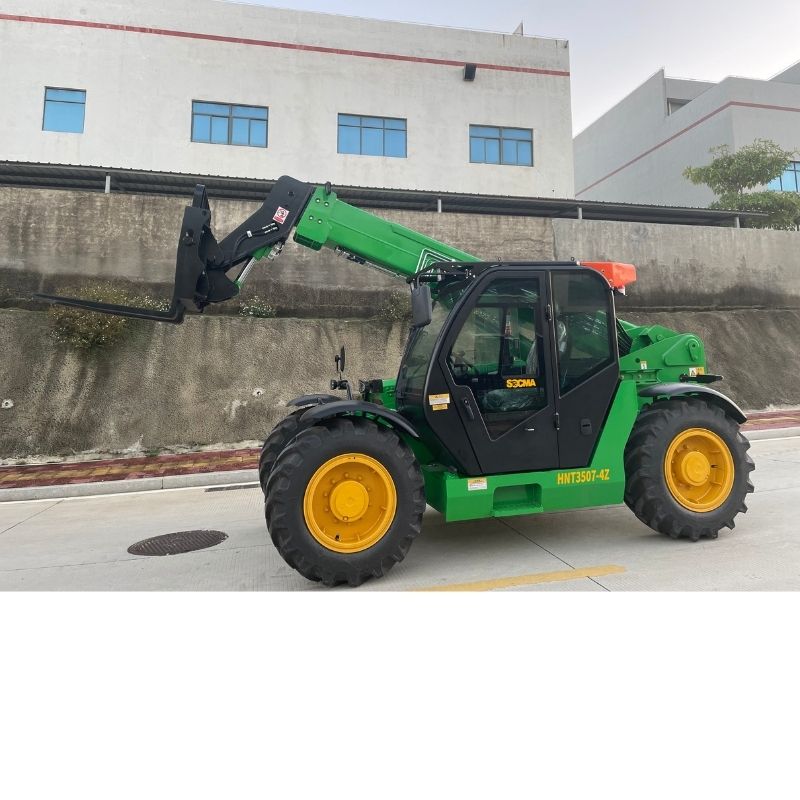

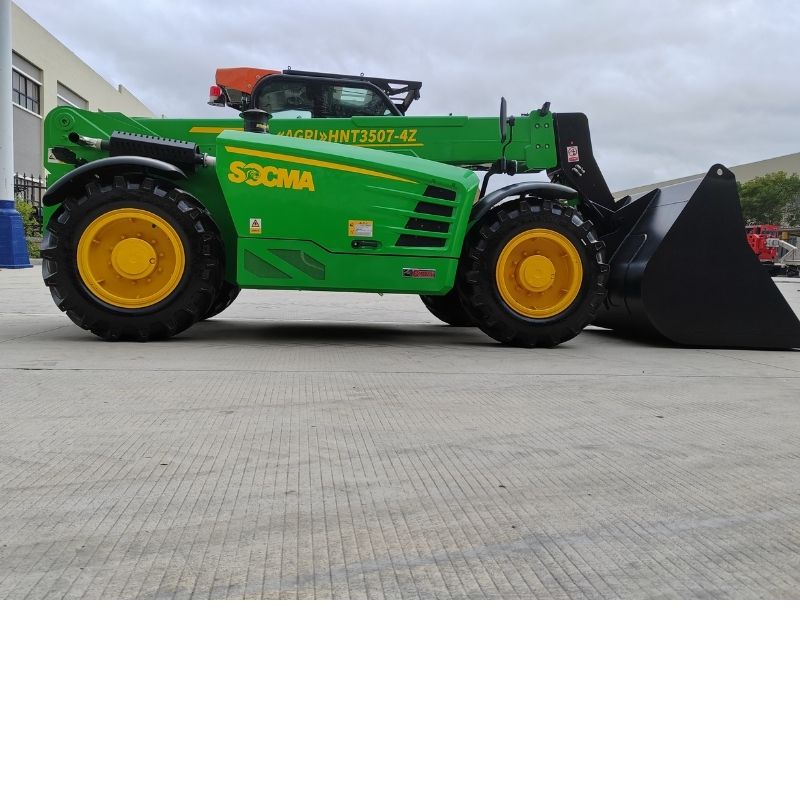

The SOCMA HNT3507 3.5 Ton 7 Meter Telehandler Forklift is designed for versatile material handling in construction and agricultural settings. With a 3.5-ton lifting capacity and a 7-meter reach, it offers robust performance and adaptability for challenging tasks.
The SOCMA HNT3507 3.5 Ton 7 Meter Telehandler Forklift is engineered for demanding construction and agricultural applications. It features a 3.5-ton lifting capacity and a 7-meter telescopic boom, enabling efficient lifting and placement of materials at height.
Equipped with a hydraulic-mechanical transmission and hydraulic power steering, the HNT3507 ensures precise control and stability on uneven terrain. The two-stage quadrilateral telescopic boom includes a side shifter, with optional attachments like buckets and lifting hooks for added versatility.
Powered by a Cummins turbocharged diesel engine, the HNT3507 offers reliable performance with optimized cooling via an air-to-air radiator. The ergonomic cab provides excellent visibility and operator comfort, making it suitable for long working hours.
Rated Load: 3.5 tons
Load Center: 500 mm
Lifting Height: 7000 mm
Max Outreach (Front Wheel to Load Center): 4000 mm
Wheelbase: 2700 mm
Weight: 7000 kg
Mast/Carriage Tilt Angle (Front/Rear): 6/12 degrees
Mast Height (Fork Lowering): 2300 mm
Height to Head Guard/Height to Cab: 2400 mm
Overall Length: 4900 mm
Fork Front Vertical Surface to Rear End of Vehicle: 3700 mm
Overall Width: 2200 mm
Fork Dimension: 1000x120x50 mm
Mast Min Ground Clearance (with Load): 250 mm
Wheelbase Center Min Ground Clearance (with Load): 300 mm
Min Turning Radius: 4500 mm
Travel Speed (with Load/without Load): 20/25 km/h
Max Lifting Speed (with Load/without Load): 200/220 mm/s
Max Lowering Speed (with Load/without Load): 280/260 mm/s
Traction: 4200 N
Gradeability (with Load/without Load): 18/20 %
Driving Brake: Hydraulic clamp disc
Tire Specs - Front: 16/70-20PR
Tire Specs - Rear: 8.25-15PR
Tires Qty (Front/Rear - Drive Wheels): 2/2
Wheel Tread - Front: 1800 mm
Wheel Tread - Rear: 1750 mm
Engine Brand/Model: Cummins QSB3.9-C100
Cylinder No.: 4
Transmission Gears (Front/Rear): 2/2
Attachments Working Pressure: 18 bar
Attachments Using Oil Amount: 200 l/min
