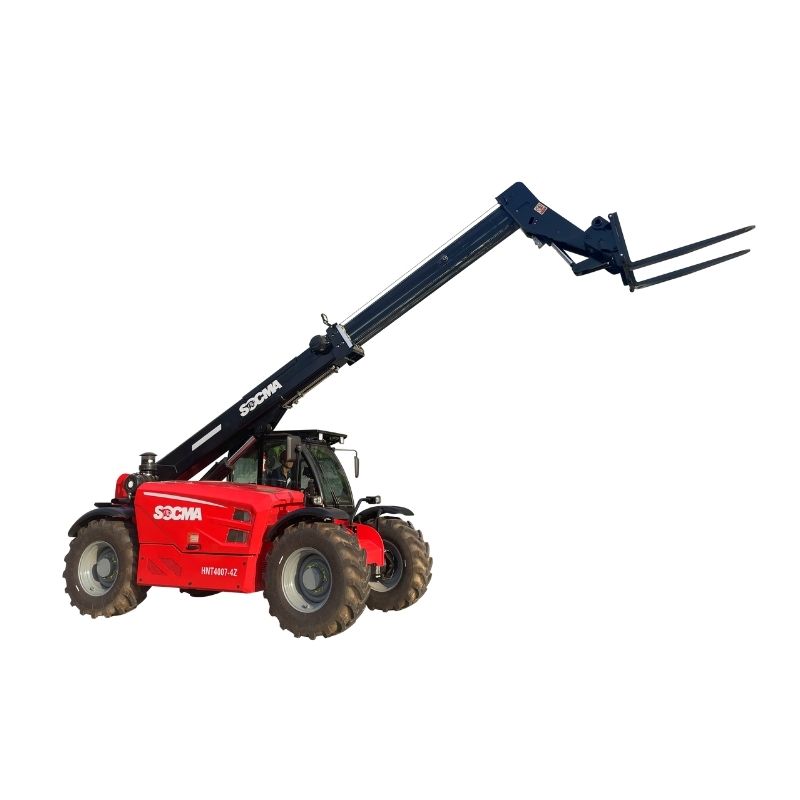

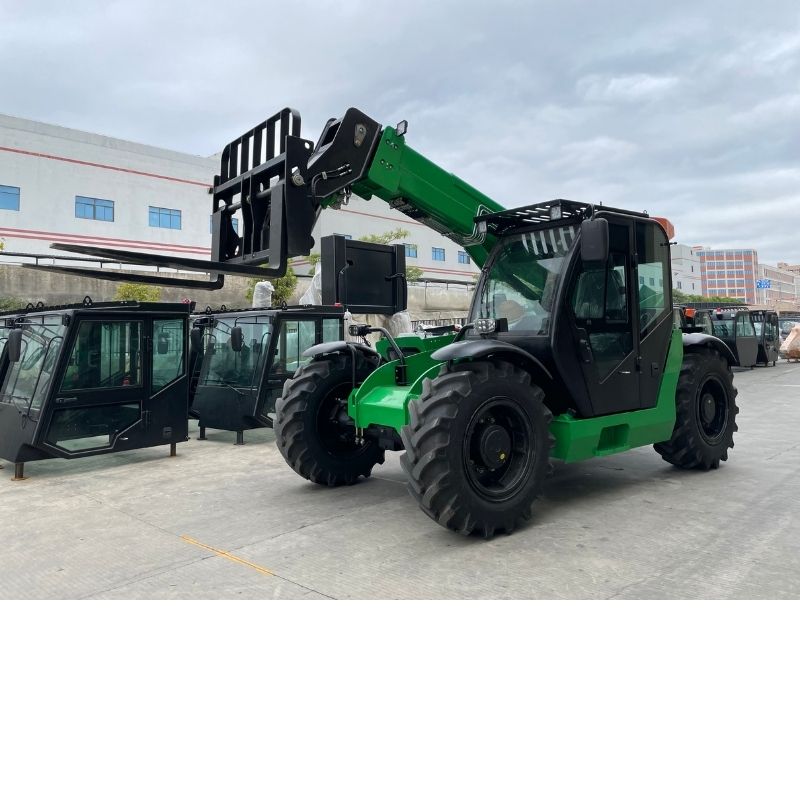

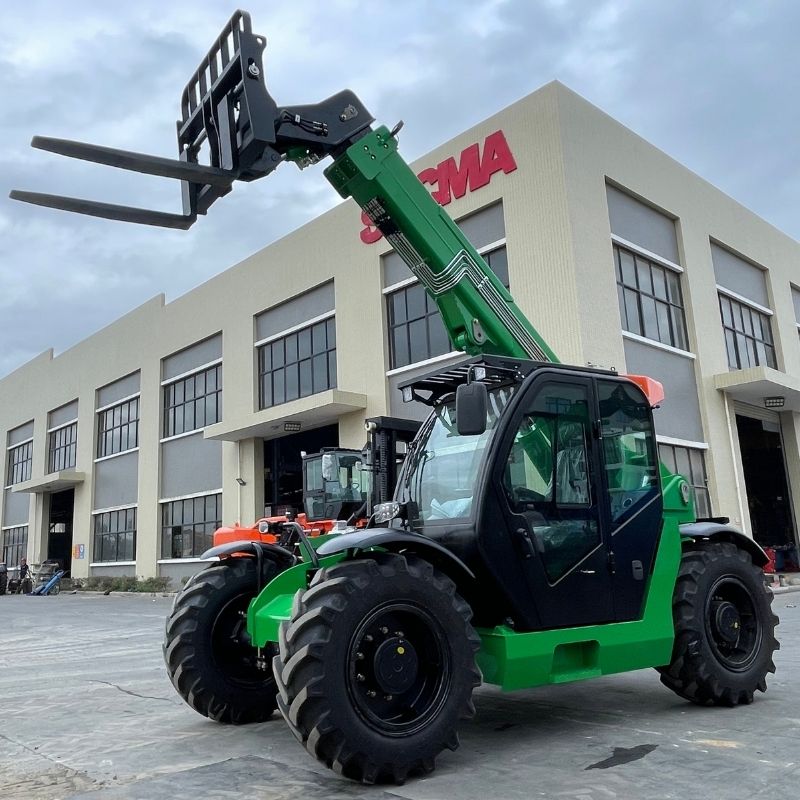

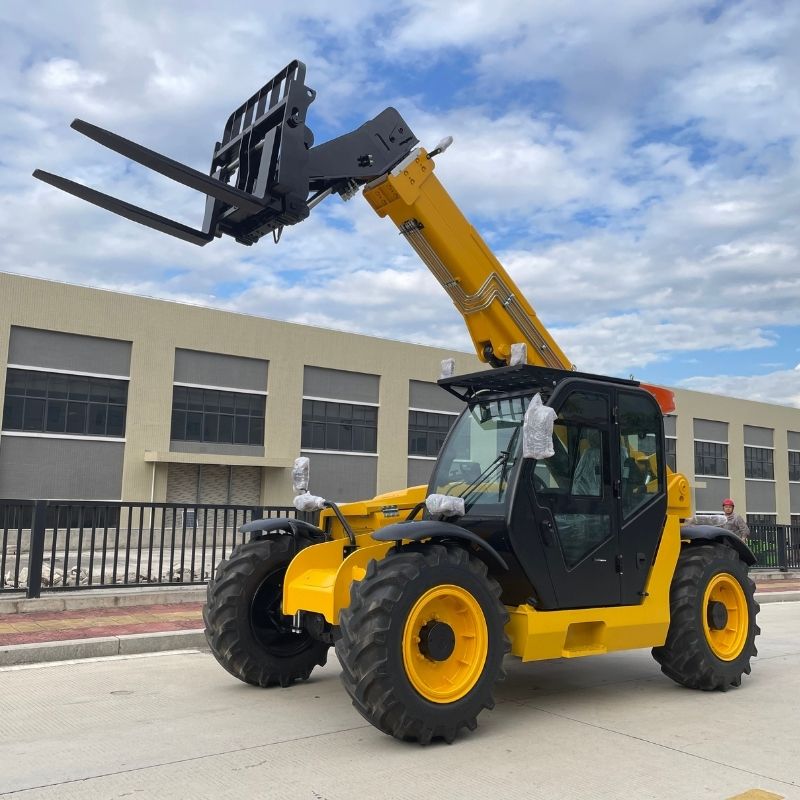

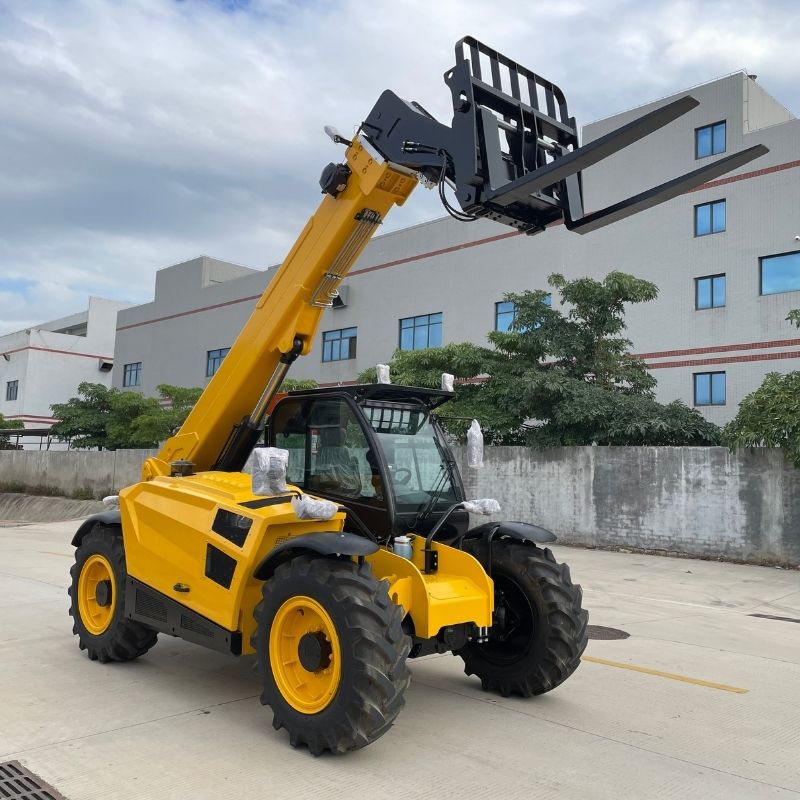

The SOCMA HNT4007-4Z 4 Ton 7 Meter Telehandler Forklift is built for rugged construction and agricultural tasks. With a 4-ton lifting capacity, 7-meter reach, and advanced 4WD/4WS capabilities, it ensures precision and efficiency in diverse environments.
The SOCMA HNT4007-4Z 4 Ton 7 Meter Telehandler Forklift is engineered for demanding construction and agricultural applications. It offers a 4-ton lifting capacity and a 7-meter telescopic boom, ideal for lifting and placing materials in challenging terrains.
Featuring 4-wheel drive and 4-wheel steering, the HNT4007-4Z provides superior maneuverability on rough terrain. Its hydraulic-mechanical transmission, hydraulic power steering, and hydraulic braking ensure precise control, while the two-stage quadrilateral telescopic boom with a side shifter enhances versatility.
Powered by a Cummins turbo0 turbocharged diesel engine with an air-to-air cooling radiator, the HNT4007-4Z delivers reliable power and efficiency. The ergonomic cab includes an adjustable seat, a wide field of view, and a multifunctional LCD monitor for monitoring engine performance, ensuring operator comfort and safety.
Rated Load: 4 tons
Load Center: 500 mm
Lifting Height: 7000 mm
Max Outreach (Front Wheel to Load Center): 4000 mm
Wheelbase: 2800 mm
Weight: 7500 kg
Mast/Carriage Tilt Angle (Front/Rear): 6/12 degrees
Mast Height (Fork Lowering): 2400 mm
Height to Head Guard/Height to Cab: 2450 mm
Overall Length: 5000 mm
Fork Front Vertical Surface to Rear End of Vehicle: 3800 mm
Overall Width: 2250 mm
Fork Dimension: 1000x120x50 mm
Mast Min Ground Clearance (with Load): 260 mm
Wheelbase Center Min Ground Clearance (with Load): 310 mm
Min Turning Radius: 4600 mm
Travel Speed (with Load/without Load): 22/28 km/h
Max Lifting Speed (with Load/without Load): 220/240 mm/s
Max Lowering Speed (with Load/without Load): 300/280 mm/s
Traction: 4500 N
Gradeability (with Load/without Load): 20/22 %
Driving Brake: Hydraulic clamp disc
Tire Specs - Front: 16/70-24PR
Tire Specs - Rear: 10.00-20PR
Tires Qty (Front/Rear - Drive Wheels): 2/2
Wheel Tread - Front: 1850 mm
Wheel Tread - Rear: 1800 mm
Engine Brand/Model: Cummins QSB4.5-C110
Cylinder No.: 4
Transmission Gears (Front/Rear): 2/2
Attachments Working Pressure: 18 bar
Attachments Using Oil Amount: 220 l/min
