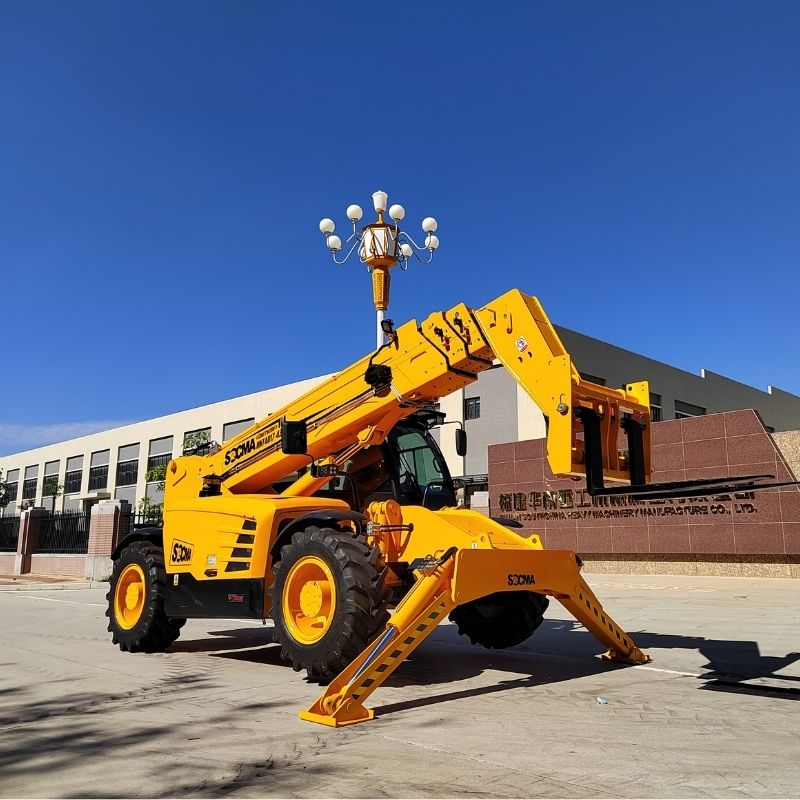

The SOCMA HNT5017-4Z 5 Ton 17 Meter Telehandler Forklift is engineered for heavy-duty construction, logistics, and agricultural tasks. With a 5-ton lifting capacity and a 17-meter reach, it delivers exceptional performance and versatility in demanding environments.
The SOCMA HNT5017-4Z 5 Ton 17 Meter Telehandler Forklift is designed for demanding applications in construction, logistics, and agriculture. It features a 5-ton lifting capacity and a 17-meter telescopic boom, making it ideal for lifting and placing materials at significant heights on varied terrains.
Equipped with 4-wheel drive and 4-wheel steering, the HNT5017-4Z ensures superior maneuverability and stability. Its hydraulic-mechanical transmission, hydraulic power steering, and hydraulic braking provide precise control, while the four-stage telescopic boom supports a variety of attachments like buckets, forks, and aerial work platforms.
Powered by a Cummins turbocharged diesel engine with an air-to-air cooling radiator, the HNT5017-4Z offers reliable performance and energy efficiency. The ergonomic cab features a wide field of view, adjustable seating, a reversing camera, and a multifunctional LCD monitor, ensuring operator comfort and safety during extended operations.
Rated Load: 5 tons
Load Center: 500 mm
Lifting Height: 17000 mm
Max Outreach (Front Wheel to Load Center): 12500 mm
Load at Max Height (on Outriggers): 2500 kg
Wheelbase: 3200 mm
Weight: 12000 kg
Mast/Carriage Tilt Angle (Front/Rear): 6/12 degrees
Mast Height (Fork Lowering): 2900 mm
Height to Head Guard/Height to Cab: 2600 mm
Overall Length: 6700 mm
Fork Front Vertical Surface to Rear End of Vehicle: 5300 mm
Overall Width: 2450 mm
Fork Dimension: 1200x150x60 mm
Mast Min Ground Clearance (with Load): 310 mm
Wheelbase Center Min Ground Clearance (with Load): 360 mm
Min Turning Radius: 4900 mm
Travel Speed (with Load/without Load): 25/30 km/h
Max Lifting Speed (with Load/without Load): 270/290 mm/s
Max Lowering Speed (with Load/without Load): 340/320 mm/s
Traction: 5200 N
Gradeability (with Load/without Load): 20/22 %
Driving Brake: Hydraulic clamp disc
Tire Specs - Front: 16/70-24PR
Tire Specs - Rear: 10.00-20PR
Tires Qty (Front/Rear - Drive Wheels): 2/2
Wheel Tread - Front: 1900 mm
Wheel Tread - Rear: 1850 mm
Engine Brand/Model: Cummins QSB4.5-C130
Cylinder No.: 4
Transmission Gears (Front/Rear): 2/2
Attachments Working Pressure: 20 bar
Attachments Using Oil Amount: 260 l/min
