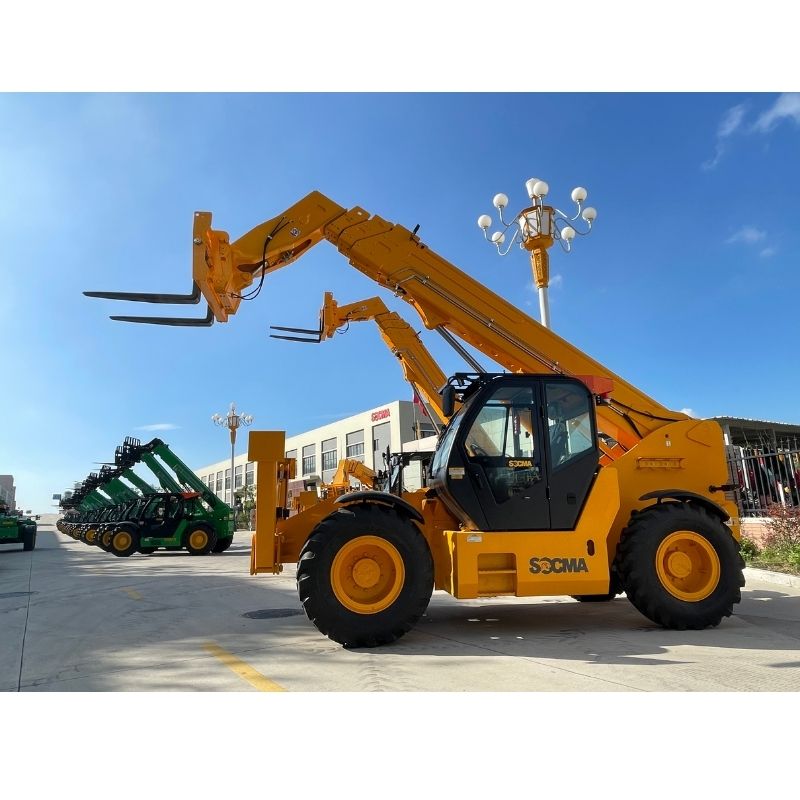

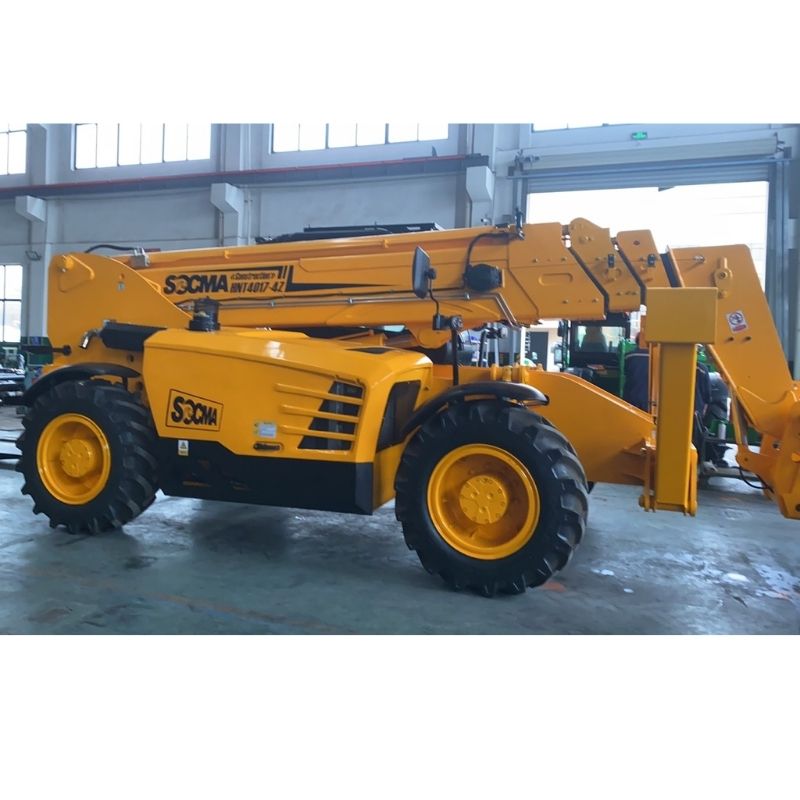

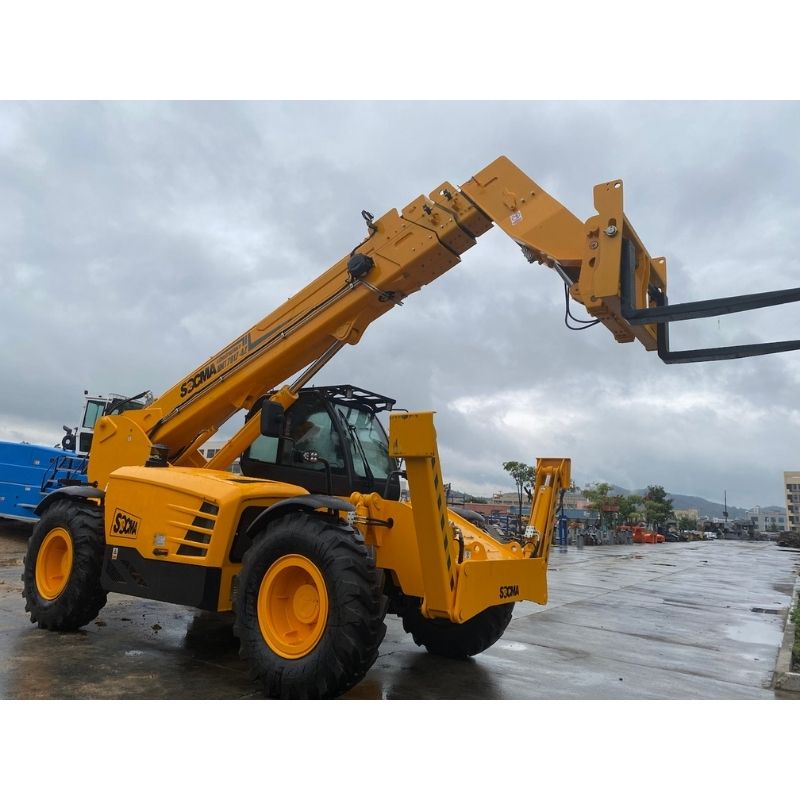

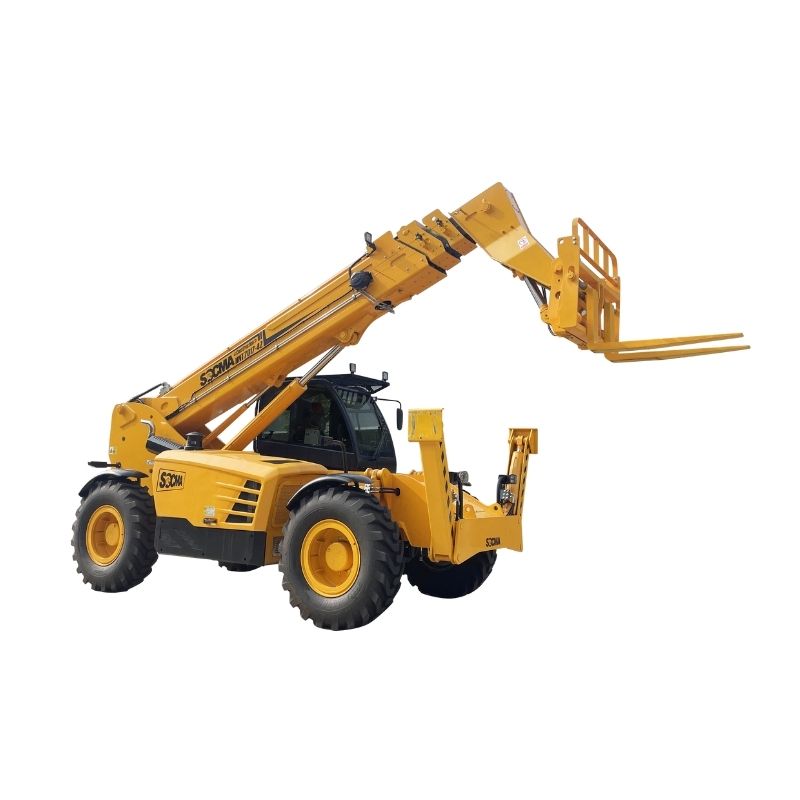

The SOCMA HNT7017-4Z 7 Ton 17 Meter Telehandler Forklift is engineered for heavy-duty construction, logistics, and agricultural tasks. With a 7-ton lifting capacity and a 17-meter reach, it combines robust performance with advanced 4WD/4WS capabilities for challenging environments.
The SOCMA HNT7017-4Z 7 Ton 17 Meter Telehandler Forklift is designed for demanding applications in construction, logistics, and agriculture. It features a 7-ton lifting capacity and a 17-meter telescopic boom, making it ideal for lifting and placing heavy materials at significant heights.
Equipped with 4-wheel drive, 4-wheel steering, and a hydrostatic transmission, the HNT7017-4Z ensures excellent maneuverability and stability on rough terrain. The four-stage telescopic boom includes hydraulic stabilizers for enhanced safety, and supports attachments like buckets, forks, and aerial work platforms.
Powered by a Cummins turbocharged diesel engine (QSB4.5-C160-30, Stage III) with an air-to-air cooling radiator, the HNT7017-4Z delivers reliable performance. The ROPS/FOPS-certified cab features air conditioning, a joystick control, a reversing camera, and a multifunctional LCD monitor, ensuring operator comfort and safety.
Rated Load: 7 tons
Load Center: 600 mm
Lifting Height: 17000 mm
Max Outreach (Front Wheel to Load Center): 13000 mm
Load at Max Height (on Outriggers): 3000 kg
Wheelbase: 3300 mm
Weight: 14000 kg
Mast/Carriage Tilt Angle (Front/Rear): 6/12 degrees
Mast Height (Fork Lowering): 3000 mm
Height to Head Guard/Height to Cab: 2700 mm
Overall Length: 6900 mm
Fork Front Vertical Surface to Rear End of Vehicle: 5500 mm
Overall Width: 2500 mm
Fork Dimension: 1200x150x60 mm
Mast Min Ground Clearance (with Load): 320 mm
Wheelbase Center Min Ground Clearance (with Load): 380 mm
Min Turning Radius: 5000 mm
Travel Speed (with Load/without Load): 25/35 km/h
Max Lifting Speed (with Load/without Load): 300/320 mm/s
Max Lowering Speed (with Load/without Load): 350/330 mm/s
Traction: 5500 N
Gradeability (with Load/without Load): 22/25 %
Driving Brake: Wet multi-disc hydraulic
Tires Qty (Front/Rear - Drive Wheels): 4/4
Wheel Tread - Front: 1950 mm
Engine Brand/Model: Cummins QSB4.5-C160-17
Cylinder No.: 4
Transmission: Hydrostatic
Transmission Gears: Automatic (4WD/4WD)
