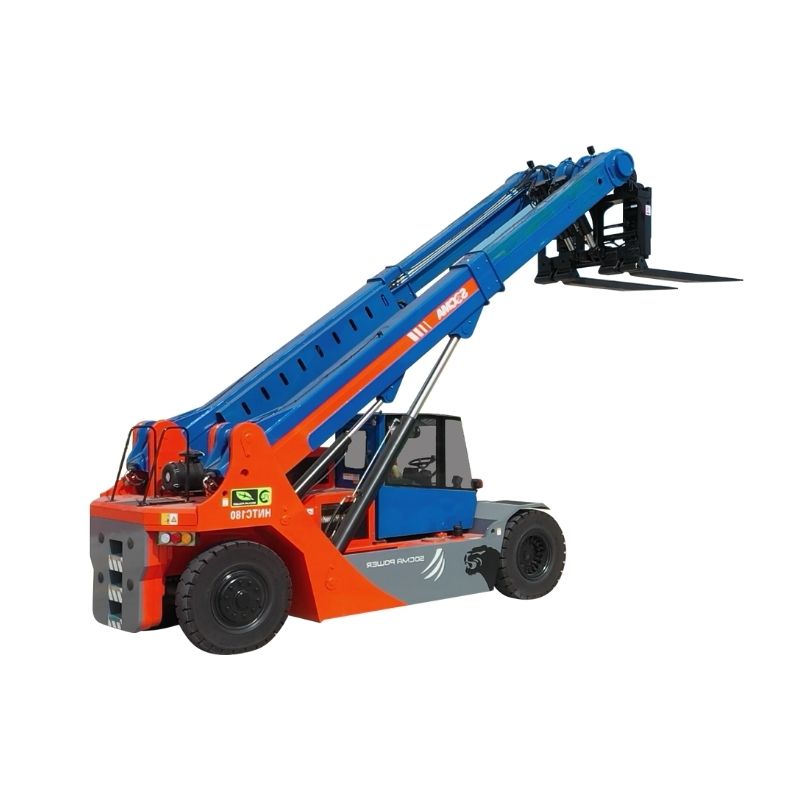

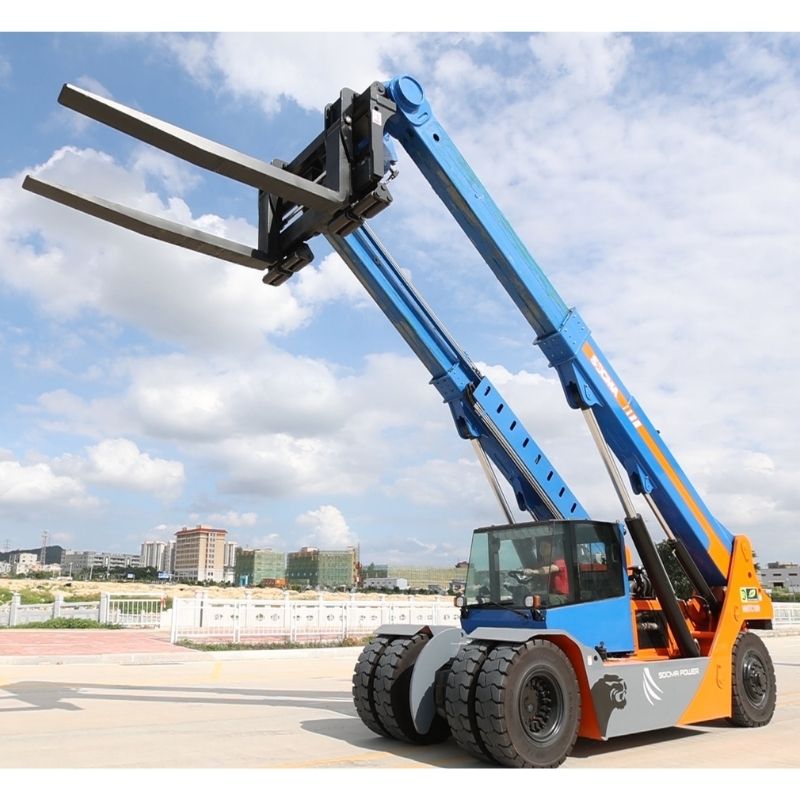

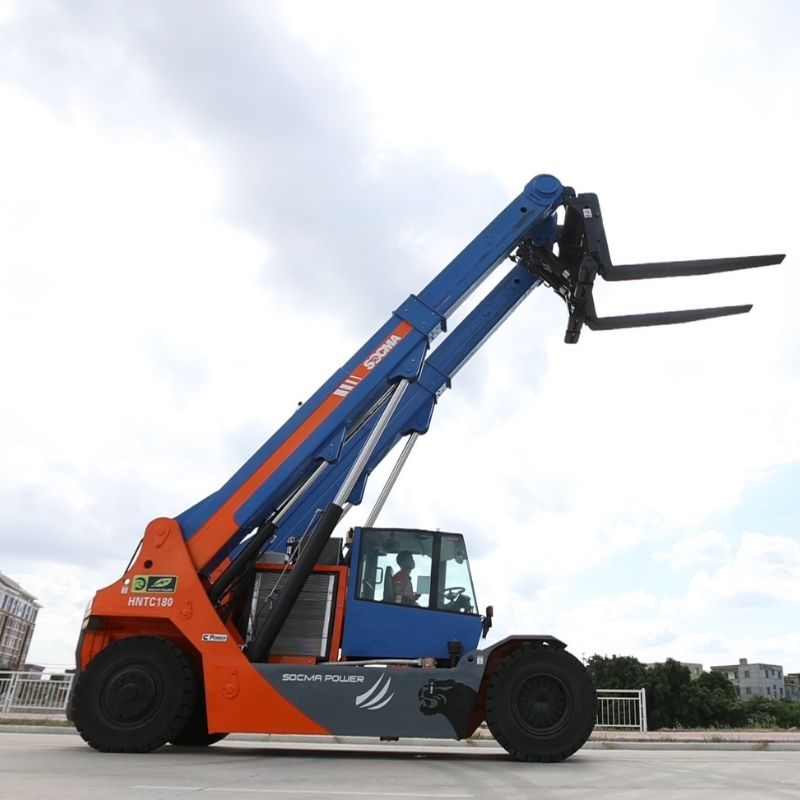

SOCMA HNTC-180 18 Ton Telehandler Forklifts For Container Handling

Product Description

The SOCMA HNTC-180 18 Ton Telehandler Forklift is designed for inside container operations, offering an 18-ton lifting capacity and a 6-meter lifting height. It excels at unstuffing, casing palletized goods, and handling various packaged goods within containers.

Equipped with a German ZF electronic transmission, hydraulic caliper disc brakes, and a two-stage telescopic boom with double arms, the HNTC-180 provides precise control and stability. The cab can be hydraulically lifted and lowered (min height 2265 mm), with a 360° rotating seat for enhanced visibility and operation.

Powered by a DF Cummins QSB6.7-C190 turbocharged diesel engine, the HNTC-180 ensures robust performance and energy efficiency. Its ergonomic design and optional attachments like hanging beams and forks make it ideal for demanding port environments.

Product Parameter

Rated Load: 18 tons

Load Center: 1200 mm

Lifting Height: 6000 mm

Max Outreach (Front Wheel to Load Center): 2500 mm

Wheelbase: 4000 mm

Weight: 19000 kg

Mast/Carriage Tilt Angle (Front/Rear): 6/12 degrees

Mast Height (Fork Lowering): 2265 mm

Height to Head Guard/Height to Cab: 2265 mm

Overall Length: 7030 mm

Fork Front Vertical Surface to Rear End of Vehicle: 5630 mm

Overall Width: 2160 mm

Fork Dimension: 2440x200x100 mm

Mast Min Ground Clearance (with Load): 150 mm

Min Turning Radius: 5530 mm

Travel Speed (with Load/without Load): 28 km/h

Max Lifting Speed: 0.26 m/s

Traction: 6500 N

Gradeability (with Load/without Load): 20/25 %

Driving Brake: Hydraulic Caliper Disc

Tire Specs - Front: 4x12.00-20

Tire Specs - Rear: 2x12.00-20

Engine Brand/Model: DF Cummins QSB6.7-C190

Engine Horse Power: 140 kW / 2200 r/min

Emission Standard: EU Stage III A

Transmission Type: German ZF Electronic
